Piece-mark register · Seq 2–3 Sample output

1,608Members detailed

21With the EOR

DSTVCNC files generated

Mark	Member	Type	State	Sequence
1B-1042	W24x84 beam, coped	Beam	Approved	Seq 2 / Zone B
1B-1043	W24x84 beam	Beam	Approved	Seq 2 / Zone B
1C-0221	HSS 8x8 column	Column	Approved	Seq 2 / Zone B
1C-0224	HSS 8x8 column, base plate	Column	With EOR	Seq 2 / Zone B
1X-0087	Brace, L6x6	Brace	Approved	Seq 3 / Zone A
1S-0310	Stair stringer, C12	Misc	Approved	Seq 3 / Core
1P-0562	Connection plate, 3/4"	Plate	With EOR	Seq 3 / Zone A
1B-1101	W16x31 infill beam	Beam	Approved	Seq 3 / Zone A
1R-0044	Rail post, HSS 2x2	Misc	Approved	Roof

21 connections sit with the engineer of record. Nothing is released to the shop before approval.

Your shop never
waits on drawings.

NeevIQ is the detailing bench for steel — Tekla models to LOD 350–400, connection design assist, erection drawings and CNC output, delivered on your fabrication schedule.

See what we detail

We work in your stack

Tekla StructuresSDS/2RevitNavisworksAutoCADDSTV / NC1DWGIFC

Detailing capacity

Tekla capacity without the Tekla hire

US steel detailing talent is scarce and expensive — NeevIQ's own market research names it the chronic bottleneck on steel scopes. Our Tekla team is the bench you scale.

Member sizing, copes, holes and welds detailed to your standards and your title block — not a generic template.

Stadiums, wastewater treatment plants and industrial facilities are in the delivery record.

Shop output

Drawings that go straight to the machine

The fabrication file and the erection drawing describe the same member, because both are generated from one model — never redrawn.

Schedules are generated, so a revision moves them with the model instead of leaving the paper to disagree with the steel.

Bar bending schedules and precast panel drawings from the same coordinated environment.

Approvals

Approvals stop gating erection

We produce calcs-ready connection details; your engineer of record reviews, approves and stamps. That line never moves.

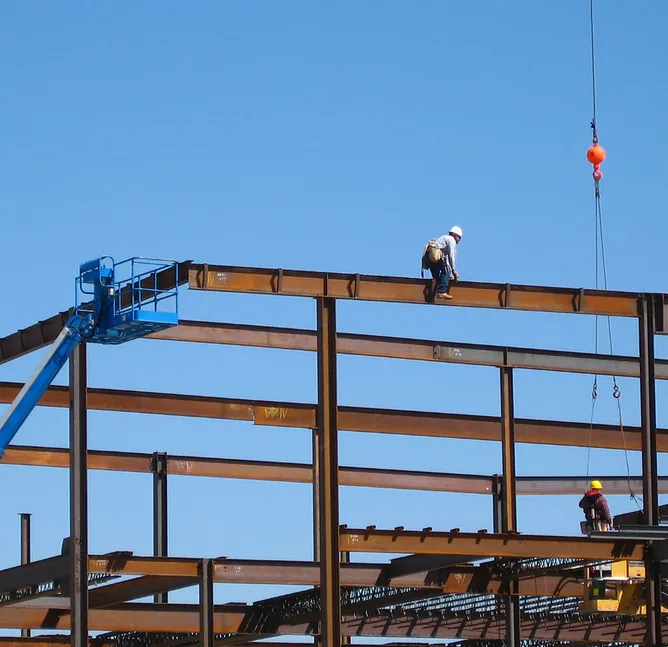

Piece marks, shakeout and sequence aligned with how the iron actually goes up.

Approved shop drawings gate delivery, and delivery gates erection. Ours land on the fabrication schedule, not after it.

How we work, in four steps.

1.

One package — a sequence, a zone, or one building's steel

2.

Your standards captured: conventions, connection library, formats

3.

We detail, you review, your EOR approves

4.

Drawings, schedules and CNC files land together, from one model

Talk to a VDC lead

Send us one package — a sequence, a zone, or one building's steel.

The stack

Model, detail, approve, release

RevitNavisworksAutodesk TakeoffBluebeam RevuCivil 3DDynamoRevitNavisworksAutodesk TakeoffBluebeam RevuCivil 3DDynamo

Navisworks QuantificationCostXVico OfficeiTWOTrimble WinEstExcelNavisworks QuantificationCostXVico OfficeiTWOTrimble WinEstExcel

Tekla StructuresRhino + GrasshopperACC / BIM 360SolibriReviztoIFCTekla StructuresRhino + GrasshopperACC / BIM 360SolibriReviztoIFC

Every member traced from model to machine.

Your conventions

Captured at intake, held on every sheet.

Your tools

Tekla, SDS/2, DSTV / NC1, DWG, IFC.

Your machines

Files your equipment reads, first time.

Frequently asked

Do you stamp?

No. We produce production-ready detailing and connection design assist; the engineer of record reviews and approves. We never replace the EOR.

What comes out for the shop floor?

Can you match our shop standards?

How fast on a revision?

Do you handle misc steel?

What if we already have detailers?

Send us one steel package.
